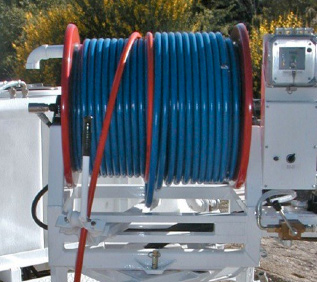

Hose and Hose Accessories
Harben California sells thermoplastic sewer hose and swage fittings supplied by leading U.S. manufacturers including Parker-Hannifin, Piranha Hose Products, Poly Flow and Aeroquip.
Repair or replace damaged hose
Practice “safety first”. Cuts that sever the internal braid—even if minor in nature—can lead to hose failure, severe injury, death and property damage. Immediately remove kinked, crushed or blistered hose from service. Don’t attempt to repair hose worn smooth from use. Never use hose with fittings that leak or move when the hose is pressurized.
If you chose to make repairs...
We’ll correctly match swage dies, mender, male and female fittings to repair any high pressure jet hose sized from 3/8-in. ID to 1-1/4-in. ID. If you’re confused by the significance of interior or exterior colors used my manufacturers to identify the source of the hose and its pressure rating, call us for answers.
If you’re comparing prices...
Contact us for a quote. We ship hose to all U.S. destinations. And, if you’re looking for hose guides and leader hose, we stock these items.
Need footage counters?

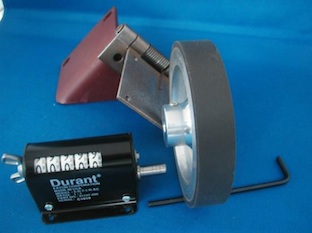

We stock Redington and Durant mechanical counters, drive wheels and hose level wind guide assemblies.
Documents downloadable in Adobe pdf format: |
|||
5/8-in. and 1/2-in. ID bonded thermoplastic hose
Choose from hose reinforced with two polyester braids or a single aramid braid.
- Operating pressure. All 5/8-in. and 1/2-in. hose sold by Harben California has an operating pressure rating of 4,000 psi
- Safety pressure
- Hose reinforced with dual polyester braids is safety pressure tested at 10,000 psi.
- Aramid braided hose is supplied with safety pressure ratings of either 12,000 psi or 16,000 psi, depending on the hose manufacturer. Aramid braid improves the flexibility and resilience of thermoplastic hose and, typically, extends its useful life.
- Hose covers are constructed from a poly-olefin blended material resistant to hydrolysis and supplied in blue, black and green colors.
- All hose meets Waste Equipment Technology Association (WASTEC) specifications.
Contact us for specifications and prices.
3/8- in. ID bonded thermoplastic hose
Poly braid reinforced with a rated operating pressure of 4,000 psi and 10,000 psi safety rating. Hose shown is fitted with custom 3/8-in. male x 1/2 in. male (swivel) ends. Supplied in custom lengths with custom end fittings. Contact us for specifications and prices.
1/4- in. ID bonded thermoplastic hose
Poly braid reinforced with a rated operating pressure of 5,000 psi and 12,500 psi safety rating. Red cover. Hose assembly includes a 1/4 in. male NPT end fitting on each end. Available in 50-ft. increments from 50-ft. to 300-ft. All hose is coiled. Contact us for specifications and prices.
Mini hose kits include a stainless steel ball jet nozzle with 3 rear jets and 1 forward penetrator jet. Or, choose from an assortment of available ball, penetrator and rotating nozzles suited for 1/4-in. and 3/8-in. hose.
Also, supplied with 1/4 in. female swivel JIC x 1/8 in. male NPT end fittings. Black cover.
3/16-in. Brass braided reinforcement
Available in 75-ft. lengths only. 3,250 psi rated operating pressure. Brown poly cover. Hose shown with available 1/8 in. button penetrator nozzle. Price also includes choice of 1 ea. 1/4" MNPT x 1/4" FXNPT (swivel) bushing or 1/4" MNPT x 3/8" FXNPT (swivel) bushing adaptor to permit attachment of 3/16" hose to 1/4" or 3/8" main hose. Contact us for specifications and prices.
Smooth sided flexible hose guide
Shown: 3-in. ID x 36-in. Available in 2-in. ID and custom lengths. Download and print Adobe PDF file.
Corrugated flexible hose guide
Shown: 3-in. ID x 36-in. Available in 2-in. ID and custom lengths. Download and print Adobe PDF file.

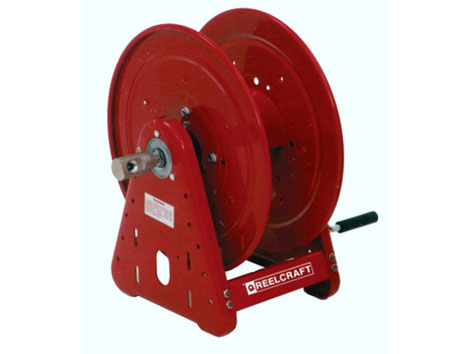

Garden hose storage reel
1/2-in. ID x 100-ft. capacity, 3000 psi rated reel with manual crank. Download and print Adobe PDF file.
Hydraulically assisted swage tool kit for thermoplastic hose
Includes 2 die sets, 1 male end fitting, 1 mender fitting, lubricant and wheels. All dies and fittings are matched to hose manufacturer’s specifications. Download and print Adobe PDF file.

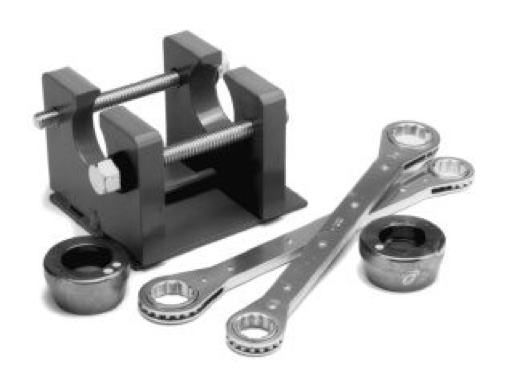

Swage die set and pusher for thermoplastic hose
Available for all hose diameters. Fitted to match the hose manufacturer’s specifications. Contact us for information, specifications and prices.
Hose level wind assembly
Heavy duty roller style with footage counter. Adapts to most hose guide assemblies. Download and print Adobe PDF file.
Standard duty level wind with counter
Tube style. Dual poly rollers keep hose aligned inside tube. Spring loaded counter wheel accurately counts hose footage, forward and reverse, as hose passes through the tube
- Adapts to most hose reel assemblies
- Easy after‐market installation
- Use with ½‐in., 5/8‐in. ¾‐in. and 1‐in. hose
