Features

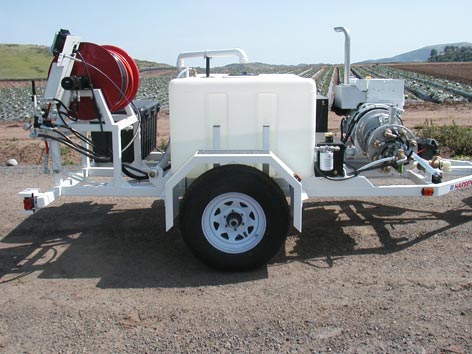

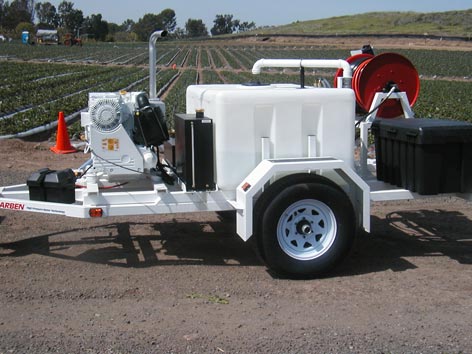

Get all of Harben's most important functional equipment—STANDARD—with the model E trailer jetter.

PUMP

• Harben rotary piston "P" pump
  • 5-yr. warranty
  • Unrivaled dependability: operate thousands of hours without a major overhaul
  • Jet up to 18 gpm and 4,000 psi
  • Pump runs dry indefinitely—no risk of overheating
  • Pump fresh water, reclaimed water, salt water and hundreds of soluble chemicals
• Other pressure and flow combinations available—all with the same performance qualities
• Learn more

ENGINE AND DRIVE SYSTEM

• Deutz industrial class air cooled diesel engine—rated 48 h.p. Learn more
• Federal EPA tier 4i rated and exempt from CARB PERP registration requirements and fees. Learn more
• Engine, gear box and pump assembly direct coupled and shrouded. No clutch, belt or sprockets to adjust, wear or replace. Learn more
• Gear box manufactured with flexible couplings to reduce noise

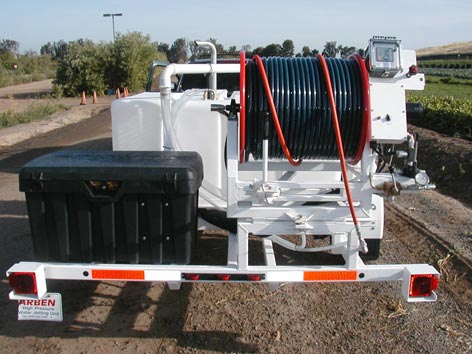

HOSE REEL

• Hydraulically powered rotating hose reel. Reel does not pivot
• Reel furnished with 500-ft. x ½-in. lightweight thermoplastic sewer hose
• Learn more

WATER TANK

• 300-gallon capacity, rotationally molded, U.V. protected polyethylene water tank
• Rigid fill line pipe with side access hose fitting and tank air gap
• Learn more

TRAILER

• Single axle trailer equipped with 16-in. wheels, leaf spring suspension, electric or hydraulic surge brakes, DOT and California DMV required running and clearance lights and 5/16-in. ball hitch.
• Frame built with rigid tubular steel
• Powder coated frame and body for long term durability in marine and harsh environments
• Rolled fenders coated with an epoxy chip guard and fitted with clearance lights
• Light weight and maneuverable—weighs 3,100 pounds (approx.); length: 176-inches
• Low profile for safe visibility
• Learn more

CONTROLS

• 12-volt keyed ignition, cable variable throttle control, lever operated water selector and reel rotation control valves
• Sealed and lockable control panel. NEMA 4 rated
• Learn more

ACCESSORIES

• Tool box for secure storage of bulky items. Learn more
• 12-volt accessory outlet
• Complete complement of tools including two high efficiency nozzles, 10-ft. x ½-in. leader hose , 2-in. x 36-in. flexible hose guide and nozzle extension
• Descriptive operation, parts and maintenance manuals or CD for pump, engine and jetter

Applications

• Clean heavy concentrations of grease from commercial and residential drain lines without damaging clay or schedule 80 PVC pipe. Use optional rotating nozzles to scour lines up to 18-inches in diameter.
• Shred roots in lateral lines
• Blow mud, sand and gravel from pipe up to 10-inches in diameter
• Strip light scale and chemical deposits from pipe interiors without abrasive chains, cables and brushes
• Dial down the flow rates to clean small drains with available 3/16-in., 1/4-in. and 3/8-in. hose and specialty nozzles
• Use optional “Hoverclean” scrubbers and safety guns with rotating turbo nozzles to scour surfaces. Remove light concentrations of paint and grease without adding abrasives to the jet stream.
• Add dry and wet abrasive blasting kits to eradicate heavy concentrations of paint, chemicals, rust and marine crustaceans from surfaces . Use precision cutting kits to lance steel pipe, core through bulkheads and debur machined parts.
• Remove wastewater spills and loose surface debris with diameters up to 3-in. from job sites with Harben’s optional “Jet Pump” venturi tools and suction hose. Transport loose debris and wastewater up to 25-ft. from job sites

Options

• Pivoting hose reel, side mounted, with deep, bulky item 6.7 cu. ft. tool box.  Learn more
• Pivoting hose reel, center mounted, with flat top fenders for optional box boxes or storage bins.  Learn more
• Engines
  • Kubota 4-cyl. water cooled diesel with shroud. Rated 48 h.p.  Learn more
  • Hatz 3-cyl. air cooled diesel with "Silent Pack" shroud. Rated 49 h.p.  Learn more
• "Jump Jet" pulsation system.  Learn more
• Wireless and cabled remote controls.  Learn more
• Foot pedal for remote jetting.  Learn more
• Pressure relief valve. Returns over pressure water to tank. Replaces standard plastic rupture disc.  Learn more
Adjustable hydraulic hose reel rotation speed control valve
• Free spin hose reel selector valve. Overrides hydraulic powered reel rotation
• Diverter valve. Permits use of small diameter hoses.  Learn more
• Polished aluminum, bulky item tool box mounted at rear. Available with E and E45 models.  Learn more
• Fender mounted tool boxes.  Learn more
• Flat top fenders in lieu of standard rolled fenders. Standard on E180 models  Learn more
• Expanded metal cage mounted next to hose reel. Available with E and E45 models.  Learn more
• Chrome wheels.  Learn more
• Fold away trailer jack.  Learn more
• Mini hose jet kit furnished with 1/4-in. hose and ball nozzle.  Learn more
• Auxiliary hose reels—electric powered, spring retractable or manual crank.  Learn more
• Roll-off, cart-mounted auxiliary hose reel for longer lengths of 3/8” ID hose.  Learn more
• High pressure hoses—3/16”, 1/4”, 3/8”, 1/2” and 5/8” ID—for multiple cleaning applications.  Learn more
• Leader hoses  Learn more
• Flexible hose guides ("tiger tails").  Learn more
• Level wind hose guide with counter.  Learn more
• Work lights  Learn more
• Safety lights
• Hand guns, lances and nozzles.  Learn more
• Nozzle storage rack mounted inside tool box.  Learn more
• Nozzles, cutting tools, manhole tools, plugs and chemicals.  Learn more
• On-site training programs—jetting safety; jetter operations; hydro-jet cleaning; equipment maintenance and repair.  Learn more
