Truck Mounted Skid Jetters


Learn more about IRS Section 179 deductions on our FAQ page or click on the banner above.

Mount a Harben jetter on a truck of your choice - new or used - and extend jetting time to 45 minutes at 4,000 psi without refilling the water tanks. Choose a truck bed as short as 11-ft. and a truck chassis with a GVWR as light as 14,000 pounds for a 300 gallon unit.

Select an engine... your choice

Harben jetters operate independent of truck chassis equipment - no PTO, hydraulic or air tie-ins. To power Harben’s rotary piston pump, pick from Hatz or Deutz 49 h.p. 3-cylinder air cooled diesel engines or select a Kubota 48 h.p. 4-cylinder liquid cooled diesel engine. Reward yourself with a standard 2-year engine warranty and 5-year pump warranty.

No belts or sprockets

All Harben pumps are direct driven using Lovejoy "Jaw" type couplings with vibration and noise dampening qualities. The pump, gear box and power linkage are completely shrouded for safety and noise abatement. There are no sprockets and belts to adjust and replace - no equipment down time.

Add versatility to your jetting operations

Select a pivoting hose reel, powered pull-out tray, cable or wireless remote control, custom tool boxes, work and safety lights and dry abrasive injector. Include a vacuum debris and grease recovery system to complement high pressure, low flow jetting.

Harben solves your need for more pressure and flow

Select Harben's Century pump with jetting pressures up to 10,000 psi to broaden surface scouring and cleaning applications. Or, if flow rates up to 25 gpm are important, substitute Harben's Hi-Q pump and 5/8" sewer jet hose.


Specifications


Jetter

  • Pump:
    • Radial piston diaphragm style “P” type fitted with 8 stainless steel barrels
    • Rated performance. up to 18 gpm; up to 4,000 psi
    • Stainless steel and brass construction with an aluminum case
    • 5-year limited warranty
  • Controls: Electronic start with keyed ignition, LED charging light and LED oil pressure light enclosed in a water proof, lockable NEMA enclosure; analog water pressure gauge; engine hour meter; vernier style cable throttle control; lever operated water and hydraulic selector valves; 12-volt auxiliary outlet
  • Water tank: Variable capacities from 110 gallons to 900 gallons depending on bed size and application requirements. Repairable, UV protected polyethylene construction. Warranted for 5-years.
  • Hose reel and hose: Hydraulically powered rotation, non pivoting powder coated reel; ½” x 700-ft. capacity, furnished with ½” x 500-ft. of high pressure bonded thermoplastic sewer hose and ½” x 10-ft. high visibility bonded thermoplastic leader hose. Hose reel assembly includes a manual hose level wind guide
  • Engine: 3-cylinder air cooled industrial diesel engine, rated 48 h.p. @ 2,800 rpm. Standard Deutz engine warranted for 2-years with major components warranted for 3-years
  • Skid: Fabricated from sectional steel tubing with forklift channels. The single piece skid measures approximately 136-in. lg. X 74-in. wide.

Truck

  • Minimum truck chassis specifications for jetter unit mounting on an open flat bed:
    • Bed length, 11-feet
    • GVWR, 13,500 lbs
    • Bed should be unencumbered by other installed equipment and accessories
    • Jetter skids are bolted to the truck bed and and are self-sustaining, requiring no chassis electrical, hydraulic or mechanical support.
  • Enclosed utility service, van and cargo body bed configurations require customized jetter component layouts. Contact us for engineering assistance.
  • Class 4 medium duty trucks with GVWR ranges from 14,001 to 16000 lbs. are recommended for skids with 300-gallon water tanks. Examples of vehicles in this class include select Ford F-450, Dodge Ram 4500 and GMC 4500 trucks.
Harben 4018 jetter with 600 gallon tank, mounted on truck body

Click on product photos to enlarge (Image 1)

Harben 4018 jetter with 600 gallon tank, mounted on truck body
Harben 4018 jetter with 600 gallon tank, mounted on truck body
Harben 4018 jetter with 300 gallon tank, mounted in service body
Harben 4018 jetter with 300 gallon tank, mounted in service body
Harben 4016 jetter with 110 gallon tank, unmounted
Harben Van Pak jetter installed in Mercedes Sprinter
Harben Van Pak jetter installed in Mercedes Sprinter
Harben jetter with 300 gallon tank and UEMSI Jet Cam video inspection system, mounted on truck body
Harben jetter equipped with pivoting narrow profile reel mounted on a hydraulic powered extension rack
Harben jetter with narrow profile reel mounted on a 30-inch frame extension

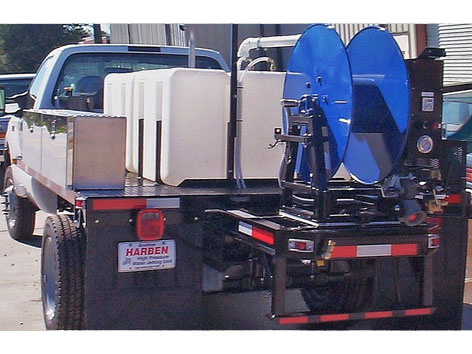

Harben 4018 jetter with dual reels mounted on hydraulically powered 30-inch frame rail extension
Harben jetter with dual reels mounted on hydraulically powered 30-inch frame rail extension
Skid mounted 4018 skid with 300 gallon tank. 136” lg. x 74” w.
Deutz 3-cyl. 48 h.p. air cooled industrial class diesel, standard
Install 4018 skid jetters with 300-gal. tanks on truck beds as short as 11-ft.  Picture shows flat bed enclosed on sides; open top.  Skids bolt directly to flat beds

Pictures in the first row, left to right:

  1. 4018 DSD 600 gallon skid with narrow reel
  2. 4018 DSHS 600 gallon skid
  3. 4018 DSHS 300 gallon skid in a service body

Pictures in the second row, left to right:

  1. 4018 DSHS 300 gallon skid in a service body
  2. 4016 DSHS 110 gallon skid, unmounted
  3. Van Pak installation in a Mercedes Sprinter

Pictures in the third row, left to right:

  1. Van Pak installation in a Mercedes Sprinter
  2. 300 gallon Harben skid with UEMSI Jet Cam video inspection system
  3. Harben skid equipped with pivoting narrow profile reel mounted on a hydraulic powered extension track

Pictures in the fourth row, left to right:

  1. Narrow profile reel mounted on a 30-inch frame extension
  2. Dual reels mounted on hydraulically powered 30-inch frame rail extensions. Picture shows rails fully retracted
  3. Dual reels mounted on hydraulically powered 30-inch frame rail extensions. Picture shows rails fully extended

Pictures in the fifth row, left to right:

  1. Skid mounted 4018 skid with 300 gallon tank. 136” lg. x 74” w.
  2. Deutz 3-cyl. 48 h.p. air cooled industrial class diesel, standard
  3. Install 4018 skid jetters with 300-gal. tanks on truck beds as short as 11-ft. Picture shows flat bed enclosed on sides; open top. Skids bolt directly to flat beds
